How to open an already linked SIM4ME Portal file?
Double-click the excel sheet file you created. It will open up and automatically launch the Flowsheet Explorer for the prz. (OR) In SIM4ME Portal, select an already created workbook.
How to launch an " SIM4ME Portal" in stand-alone mode?
Go to Start-->Program Files-->SIMSCI-->SIM4MEPortal
How to open the SIM4ME Portal if location/name of the files get changed?
Open SIM4ME Portal, Book1.xls. (This has already been configured from A2_Phenol_distillation.prz.)
This action will try to connect to PRO/II Software Server.

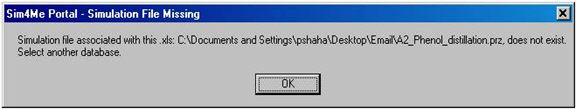

If the associated simulation file does not exist at the original location/the file is renamed, then following pop-up to edit Link or Over-write/Break link should appear.
Browse for the associated file to reconnect to the simulation file.
