Messages Command
Use this command to display the "Messages" window. This window displays the intermediate output (calculation history) generated by PRO/II during execution of the simulation. You can select the information to be included in this output using the Intermediate Output Options Window.
Usage
This command
is identical to pushing the Messages
button
from the Run Menu. The Messages
Window is then displayed which contains the intermediate output report
generated so far. This window is automatically displayed when PRO/II starts
executing when the Run Simulation
button is pushed. The contents in this window are then updated continuously
as the execution proceeds.
To view the
detailed output result of any solved unit or stream, use the View
Text Results button or press the
button on the Run menu.
Docking Message Windows:
Message window can be docked to all the four sides of the application. To dock the message window, perform the below tasks:

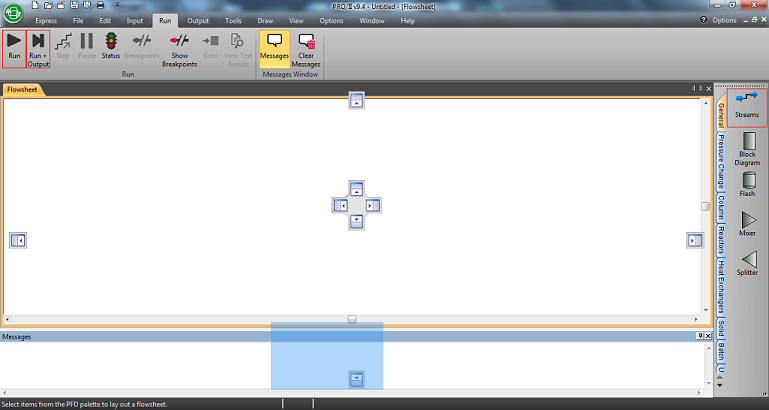

Select the Message Window title bar and move the window. This displays arrow icons as shown in the figure below.

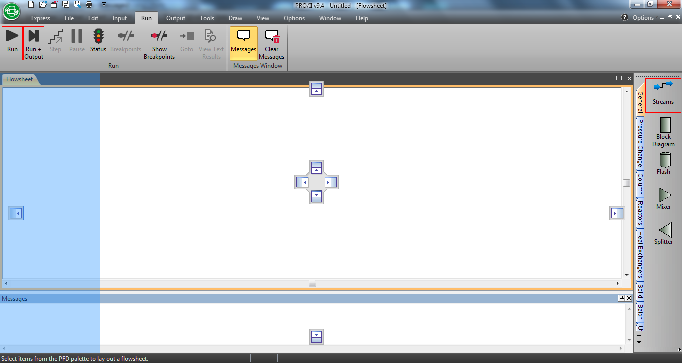

To dock it to the left, move the message window towards the left arrow icon. This action highlights the docking area as shown here.
Place the window in the docking area of the application.
