Molar Estimate
Either an estimated liquid mole fraction for the reboiler return stream or an estimated circulation rate may be provided to enhance convergence. The estimate provided must not conflict with the Thermosiphon Reboiler Specification.
The dimensional unit for the rate estimate may be changed by using the Unit-Of-Measure Selection Window, which is displayed when the UOM button is pushed.
Additional Information

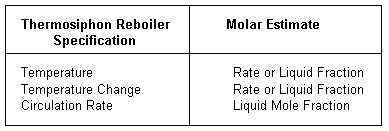

The table below lists acceptable combinations of reboiler specifications and molar estimates:
________________
